ZOJE ZJ9703AR-D4J/02 Z SET
Automatic lockstitch machine for light and medium materials, with built-in AC Servo motor and control box - complete machine
Automatic 1-needle lockstitch machine for light and medium materials. Serial equipped with automatic functions: thread trimmer, reverse feeding with programmed size of the initial and final bartack, foot lifter, needle positioning and controller of initial stitch. Integrated 3 degrees adjustable brightness energy-saving LED lamp for lighting of working field.
Model with energy-saving AC Servo motor, control box, programming control panel and power switch integrated into machine head (mechatronic "all-in-one" set). Thanks to integration of all elements the machine works quietly and without adverse vibrations. AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor.
Bottom feed, max. sewing speed 5.000 s.p.m., max. stitch length 5 mm, foot lifting up to 13 mm, central lubrication.
For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV7, with correct needle points, depending on the fabric.

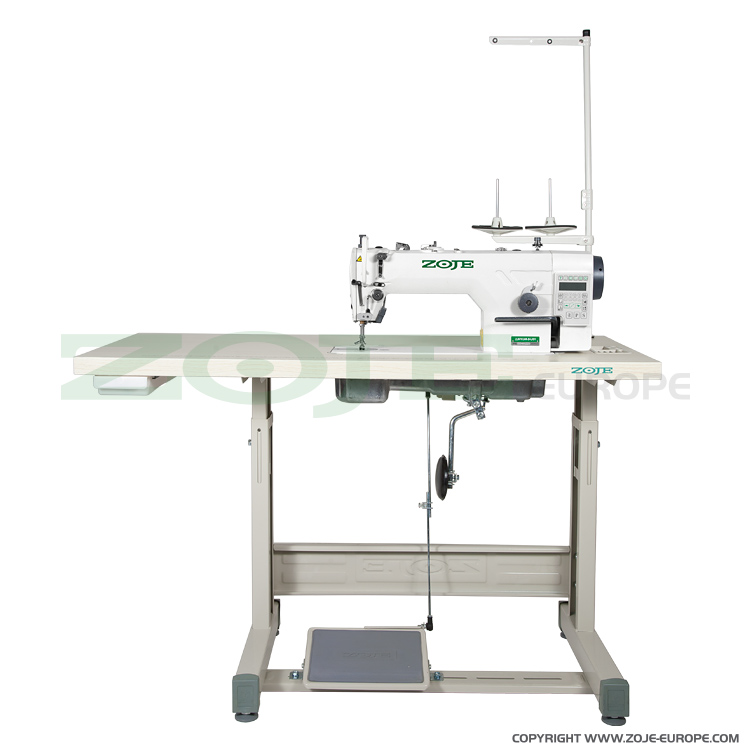

Complete sewing machine with original ZOJE stand and table top.
|Type of sewing material||light, medium|
|Type of feed||bottom|
|Built-in motor (direct drive)||yes|
|Automatic needle positioning||yes|
|Automatic thread trimming||yes|
|Automatic foot lifter||yes|
|Type of lubrication||central circuit|
|Stitch compensation button||yes|
|LED lighting of working field||yes|
|Max. stitch length||5 mm|
|Presser foot lift height||13 mm|
|Max. sewing speed||5000 s.p.m.|
