1-needle flat bed lockstitch machines with bottom and needle feed

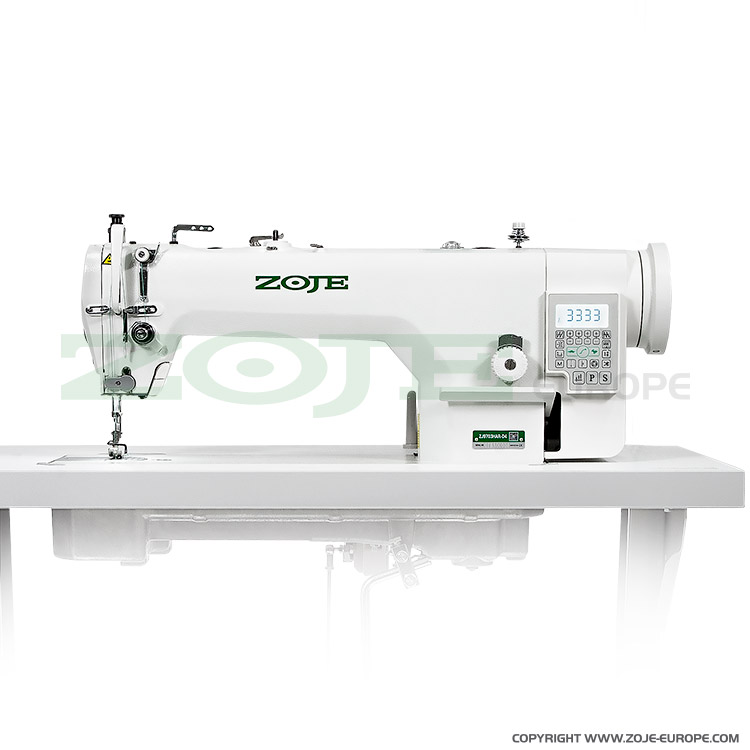

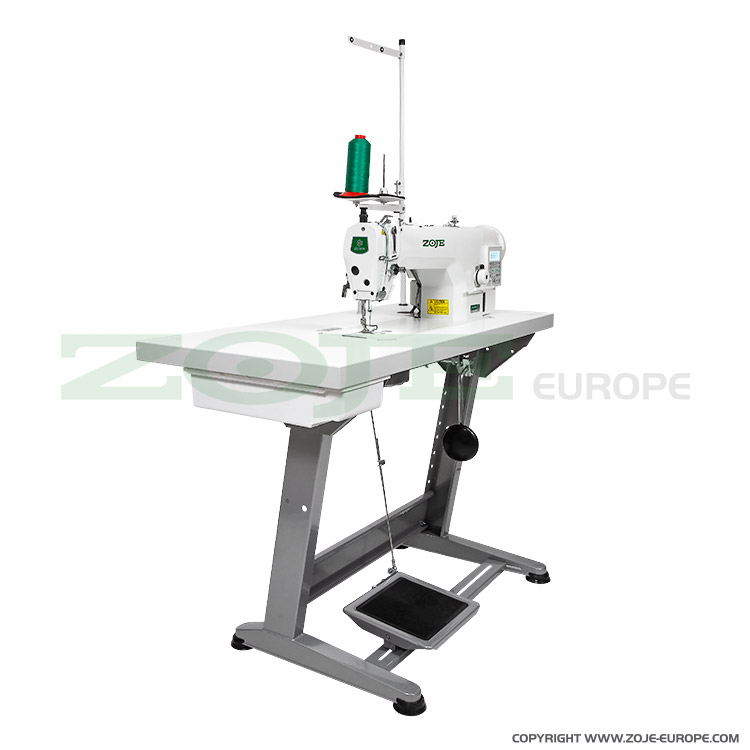

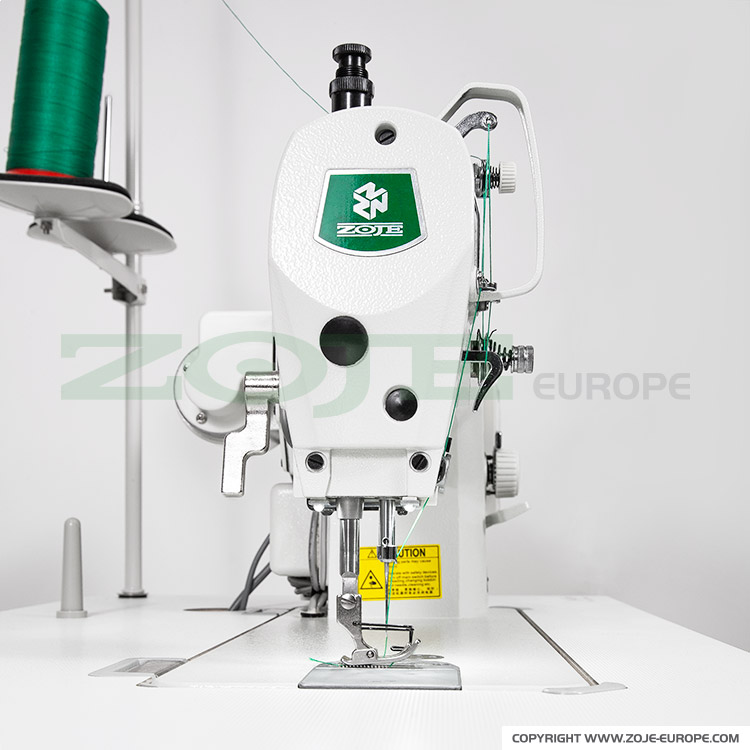

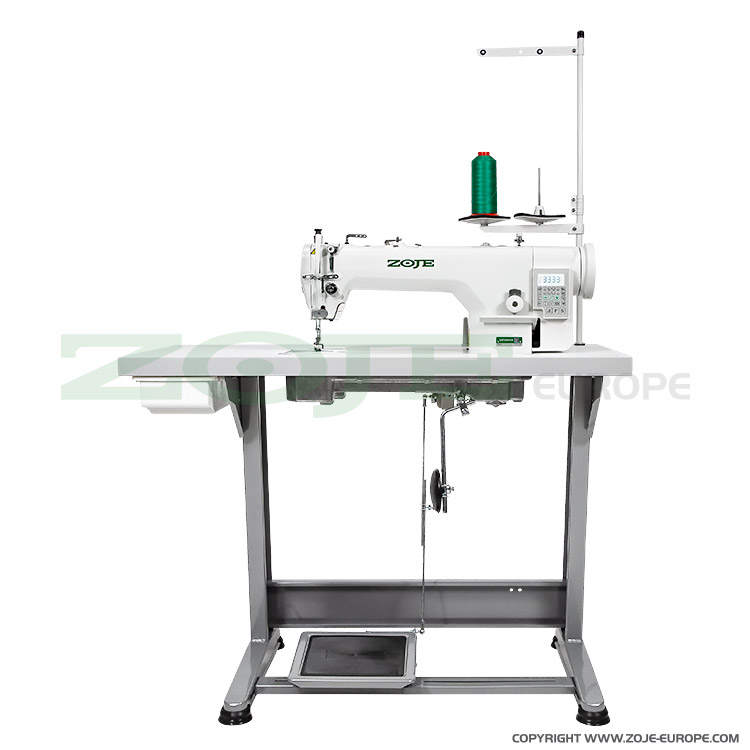

ZOJE ZJ9703HAR-D4 SET
Automatic 1-needle lockstitch machine with a maximum stitch length 12 mm, for medium and heavy fabrics - complete sewing machine
Description:
1-needle lockstitch machine Zoje ZJ9703HAR-D4 SET for sewing medium and heavy fabrics, with a large maximum stitch length - up to 11 mm, with automatic needle positioning, thread trimming, foot lifting and bartacking.
Industrial one needle lockstitch machine
Zoje ZJ9703HAR-D4 SET allows sewing with a very long stitch - even up to 12 mm , which allows for quick stitching of individual elements. The stitch length can be adjusted from 2 to 12 mm. Zoje lockstitch ZJ9703HAR-D4 SET is equipped with a large hook , and the presser foot can be raised to a height of 14 mm. The maximum sewing speed for this model is 3500 stitches per minute . Sewing machine as standard equipped with automatic functions: thread cutting, needle positioning, foot lifting and bartacking.Modern industrial lockstitch machine
Zoje ZJ9703HAR-D4 SET is equipped with an energy-saving AC SERVO motor with a power of 750 W. Thanks to the integration of the motor and control box in the head, the machine works quietly and without unwanted vibrations. A modern control panel provides quick access to sewing parameters. Industrial lockstitch with an open lubrication system.A complete sewing machine, on the stand and PREMIUM tabletop of the renowned Kessler brand. The highest quality table top made of 30-layer birch plywood guarantees long life and resistance to working conditions. Covered with structural laminate with increased resistance to impact and abrasion.
For the Zoje ZJ9703HAR-D4 SET lockstitch machine, we recommend SCHMETZ needles system 135x17 or 135x17 SERV7 .
Technical specification:
Type of sewing material | medium, heavy |
Type of feed | bottom |
Automatic needle positioning | yes |
Automatic thread trimming | yes |
Automatic foot lifter | yes |
Automatic bartacking | yes |
Wiper | no |
Stitch compensation button | yes |
Type of lubrication | central circuit |
Side trimmer | no |
LED lighting of working field | yes |
Max. stitch length | 12.0 mm |
Presser foot lift height | 14 mm |
Max. sewing speed | 3500 s.p.m. |
Built-in AC Servo motor | yes |
Needle system | 135X17 |
Kit | complete set |
