Sewing machines

Coverstitch (interlock) machines with flat-bed

3-needle flat bed coverstitch (interlock) machine for binding with auto binding tape cutting device W500PTK - complete sewing machine
3-needle flat bed coverstitch (interlock) machine for binding with auto binding tape cutting device W500PTK - complete sewing machine
3-needle flat bed coverstitch (interlock) machine for binding with auto binding tape cutting device W500PTK - complete sewing machine
3-needle flat bed coverstitch (interlock) machine for binding with auto binding tape cutting device W500PTK - complete sewing machine
3-needle flat bed coverstitch (interlock) machine for binding with auto binding tape cutting device W500PTK - complete sewing machine
3-needle flat bed coverstitch (interlock) machine for binding with auto binding tape cutting device W500PTK - complete sewing machine

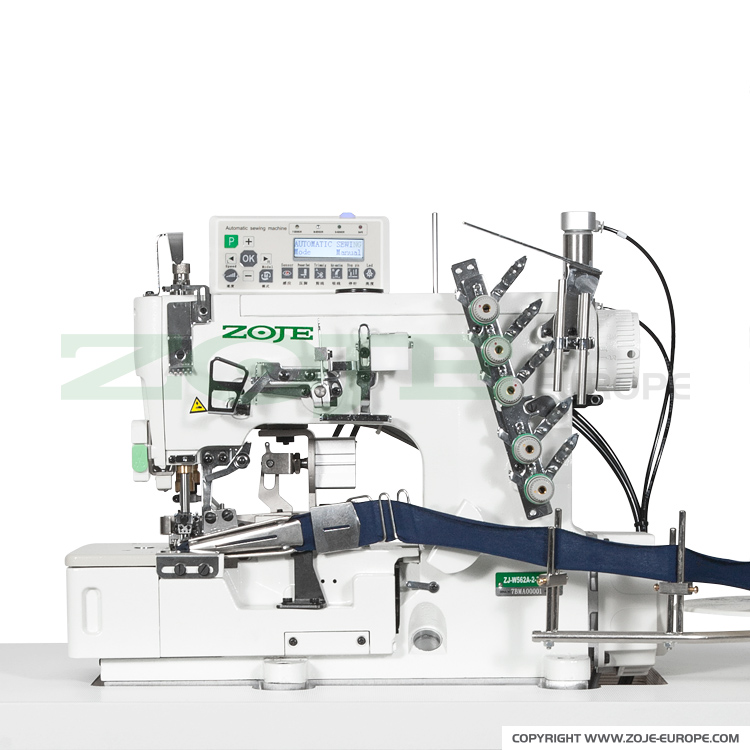

ZOJE ZJW562A-2-BD (6.4mm) + W500PTK SET

3-needle flat bed coverstitch (interlock) machine for binding with auto binding tape cutting device W500PTK - complete sewing machine

Compare products

Description:

3-needle, 5-thread flat bed coverstitch machine (interlock) for binding operations. Serial equipped with binder set (tape width 35 mm). For light and medium materials. Equipped with energy-saving AC Servo motor built-in into machine head and automatic needles positioning (top - bottom). AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor. Ensures quiet work without adverse vibration.

Needles gauge 6.4 mm, differential bottom feed, top and bottom covering (top covering possible to switch off), max. sewing speed 6.000 s.p.m., central lubrication.

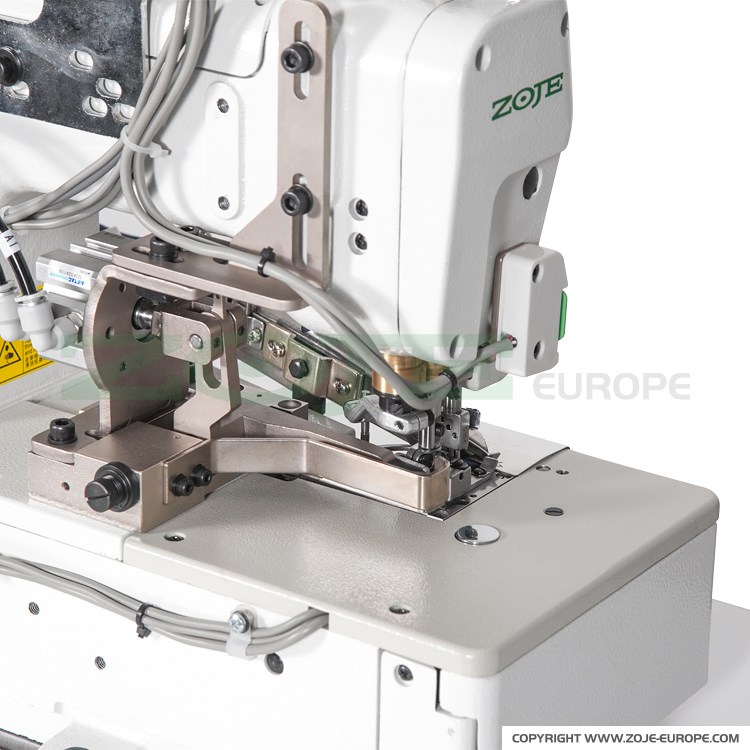

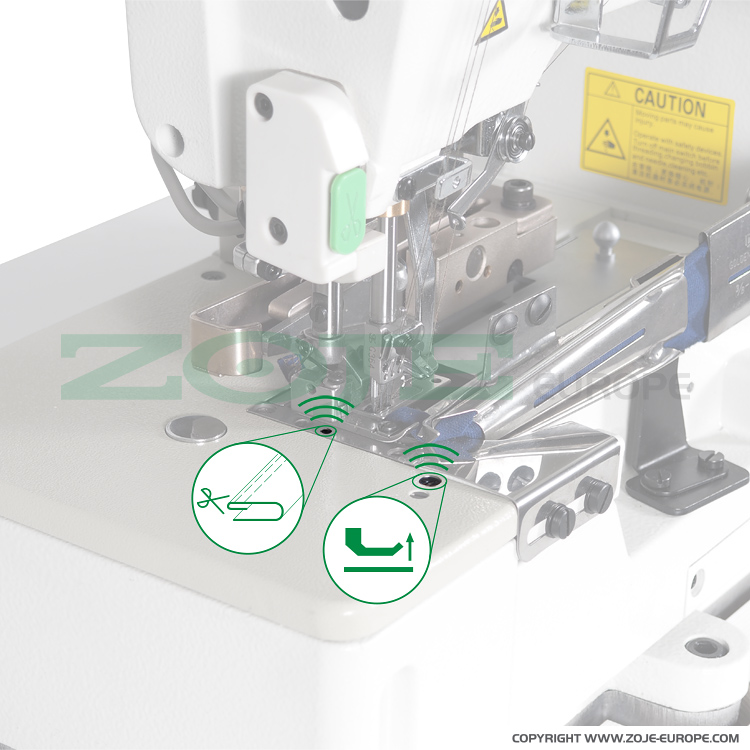

This machine is equipped with W500PTK auto binding tape cutting device which already installed and ready to use. This device allows machine to cut binding after sewing automatically using a special sensor or manually according to the needs. To cut automatically by setting the parameters from control panel, or to cut manually by pressing the switch button. The auto-presser foot function also available by using this device and one of two sensors.

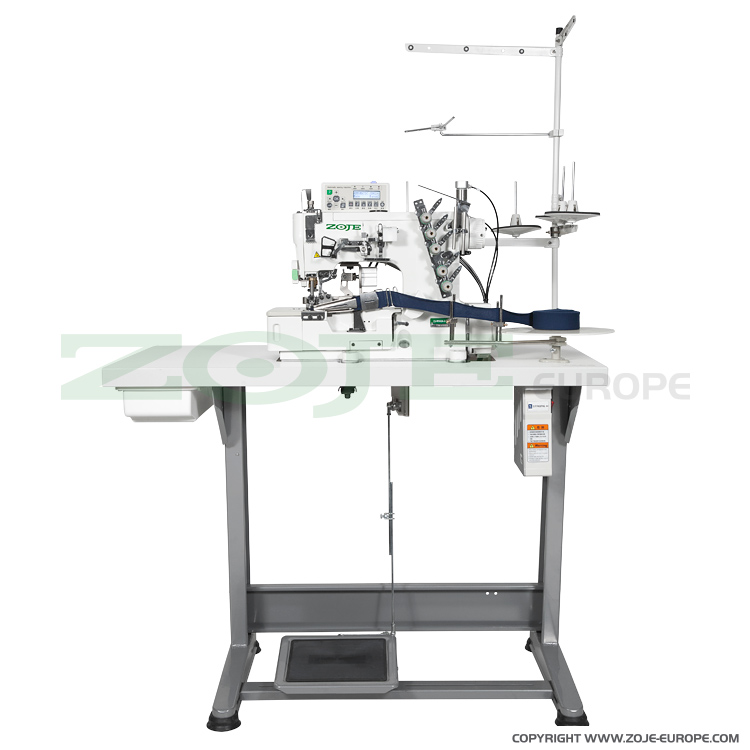

Complete sewing machine with Kessler stand and table top.

For this machine we recommend SCHMETZ needles system UY 128 GAS or UY 128 GAS SERV7 with correct needle points, depending on the fabric.

Technical specification:

Type of sewing material light, medium
Built-in motor (direct drive) yes
Bed type flat
Coverstitch machine for applications special applications
Needle gauge of coverstitch machine 6.4 mm
Automatic needle positioning yes
Automatic thread trimming no
Automatic foot lifter yes
Max. sewing speed 6000 s.p.m.
Needle system UY 128 GAS
Kit complete set
