Sewing machines

Overlock (safety stitch) machines 4-thread

1-needle, 3-thread mechatronic overlock for light and medium materials - machine head
1-needle, 3-thread mechatronic overlock for light and medium materials - machine head

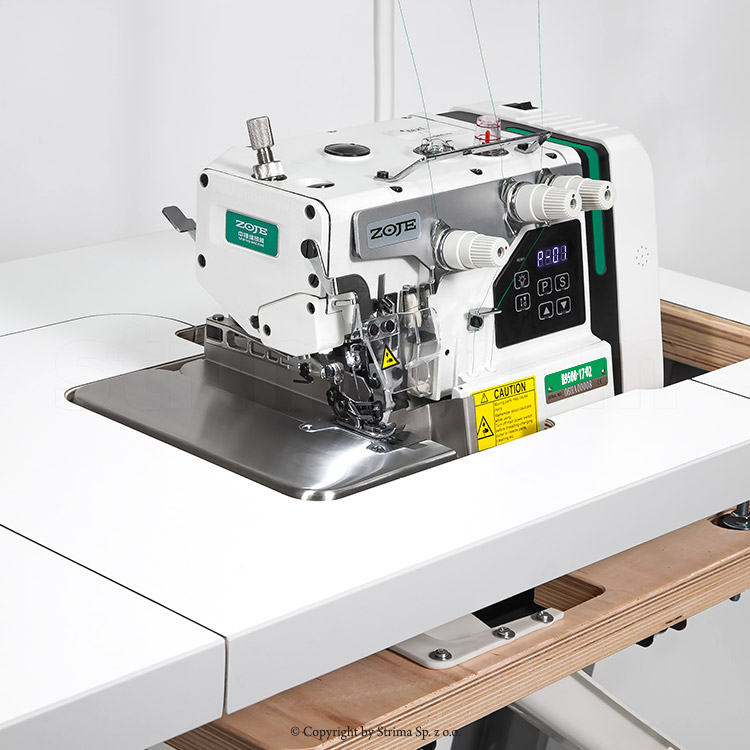

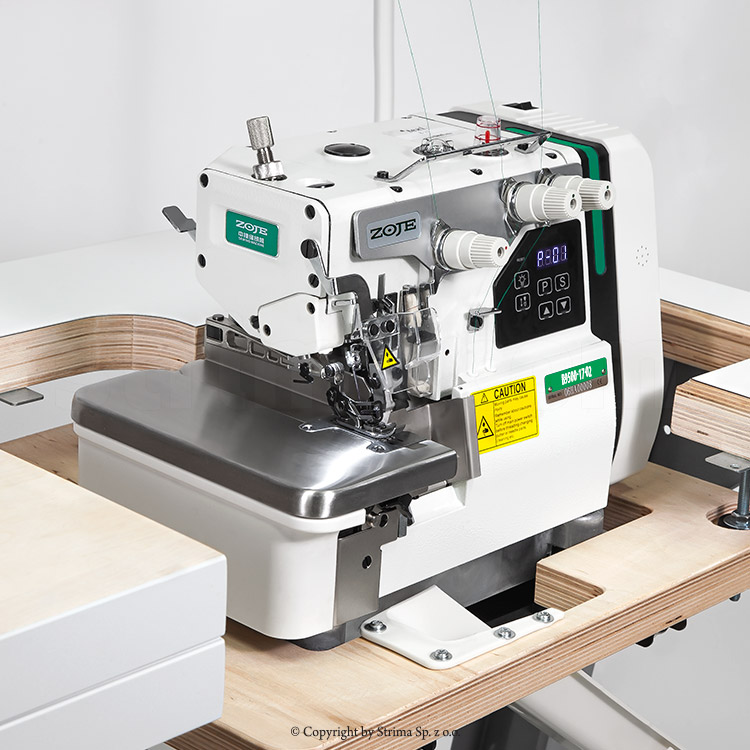

ZOJE B9500-17-02

1-needle, 3-thread mechatronic overlock for light and medium materials - machine head

Compare products

Description:

ZOJE B9500-17-02 is a mechatronic 1-needle, 3-thread overlock for sewing light and medium fabrics. Sewing machine with automatic needle positioning and differential bottom feed.

Zoje industrial overlock

ZOJE B9500-17-02 is a reliable three-thread overlock . The seam width for this model is 4mm and the maximum speed of the machine is 7000 stitches per minute . The foot lifts up to a maximum of 6 mm. Zoje B9500-17-02 is an industrial sewing machine with differential bottom feed and central lubrication.

Modern three-thread overlock

ZOJE B9500-17-02 is a sewing machine equipped with a modern, energy-saving AC SERVO motor. The motor, control box and on/off switch are built into the machine head - thanks to this the overlock works quietly and does not generate unwanted vibrations . The machine is equipped as standard with a LED lamp illuminating the working field.

For this overlock we recommend SCHMETZ system B-27 needles, with points selected for the sewn fabric.

Technical specification:

Type of sewing material light, medium
Number of threads 3
Automatic needle positioning
Top feed no
Automatic thread trimming
Automatic foot lifter
Overedging width 4 mm
Total seam width
LED lighting of working field yes
Presser foot lift height 6 mm
Max. sewing speed 7000 s.p.m.
Built-in AC Servo motor yes
Needle system B-27
Kit
