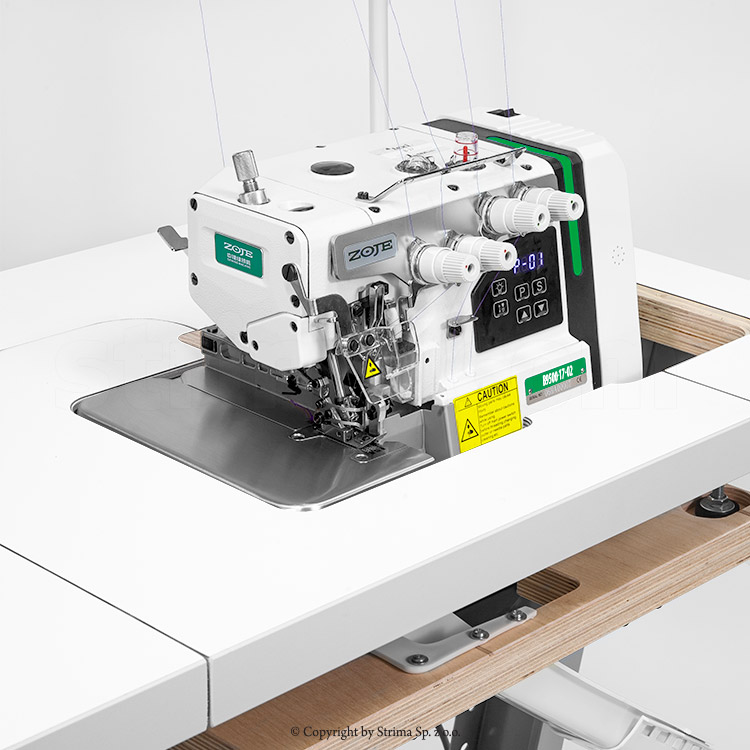

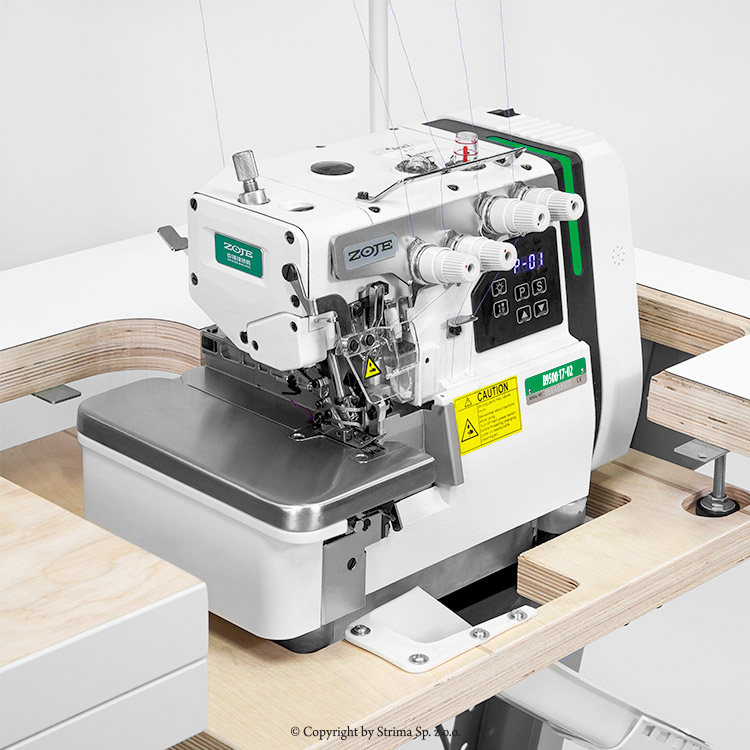

ZOJE B9500-70-02

2-needle, 5-thread mechatronic overlock for light and medium materials - machine head

Compare products

Description:

Zoje B9500-70-02 is professional overlock sewing with a wide five-thread stitch - type 516. Sewing machine with automatic needle positioning and bottom differential feed.

Industrial Zoje overlock

Model B9500-70-02 is characterized by the speed - up to 7000 stitches per minute and the stitch width - overedging width is 5 mm and the gauge of the needles is 5 mm. The total stitch width is 10mm. The foot can be raised to a height of 6 mm. This overlock model is equipped with central lubrication.

Modern five-thread overlock

Sewing machine Zoje B9500-70-02 is a model with an integrated structure. In order for the machine to work quietly and steadily, the motor, control box and drive of the needle bar are built into the head. The use of an effective AC SERVO motor allows for high energy savings. Overlock also has built-in practical lighting of the work area.

For this model we recommend needles SCHMETZ system B-27 with properly selected points.

Technical specification:

Type of sewing material light, medium
Number of threads 5
Automatic needle positioning yes
Top feed no
Automatic thread trimming
Automatic foot lifter no
Overedging width 5 mm
Total seam width 10 mm
LED lighting of working field yes
Presser foot lift height 6 mm
Max. sewing speed 7000 s.p.m.
Built-in AC Servo motor yes
Needle system B-27
Kit head
