Sewing machines

Bartacking machines, programmable

Automatic bartacking machine for light and medium fabrics - complete sewing machine


Automatic bartacking machine for light and medium fabrics - complete sewing machine

Compare products


Bartacking machine ZJ1900DSS-3-04-V4-TP SET is 1-needle, industrial sewing machine designed for sewing light and medium materials. Bartacking machine has 15 pre-programmed stitches and bartack programming functions.

Industrial bartacking machine

ZJ1900DSS-3-04-V4-TP SET is a professional sewing machine sewing with a maximum speed of 3500 stitches per minute. The machine is equipped with a number of automatic functions: automatic needle positioning, automatic thread cutting, automatic presser foot lift (13-17 mm) and automatic thread deflector . Sewing machine with central lubrication system.

Automatic bartacker

Bartacking machine ZJ1900DSS-3-04-V4-TP SET is standard equipped with a 20 x 4.5 mm buckle , which allows you to get a 18 mm bartack and use 15 preset patterns . The use of clamps available as an option - 21x5.1 mm, 27x5 mm, 10x4.5 mm, 5.6x23 mm, 2x20 mm, 20x40 mm - allows you to use the programmed 100 patterns of bartack and stitching.

Modern sewing machine

The bartacking machine ZJ1900DSS-3-04-V4-TP SET was equipped with an energy-saving AC SERVO motor. The control box and the motor are built into the head. The machine has a modern touch panel that allows for quick access to sewing parameters and saved patterns. The touch control panel allows you to easily create your own bolt and stitching valves.

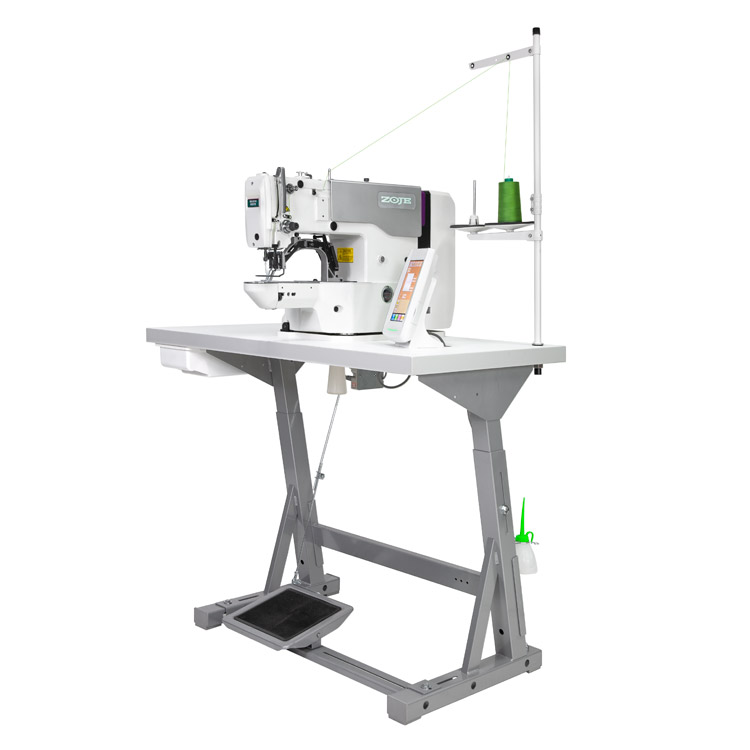

Completesewong machinewith a Kessler stand and table top.

For bartacking machine Zoje ZJ1900DSS-3-04-V4-TP SET we recommend SCHMETZ system needles 135x5 or 135x5 SERV7, with points matched to the fabric being sewn.

Technical specification:

Type of sewing material light, medium
Standard clamp size 20 x 4.5 mm
Max. bartack size (standard clamp) 18 x 4 mm
Bartacking patterns (standard clamp) 15
LED lighting of working field yes
Max. sewing speed 3500 s.p.m.
Needle system 135X5
Bartacking patterns (after changing clamp) 100
