1-needle flat bed lockstitch machines with bottom feed

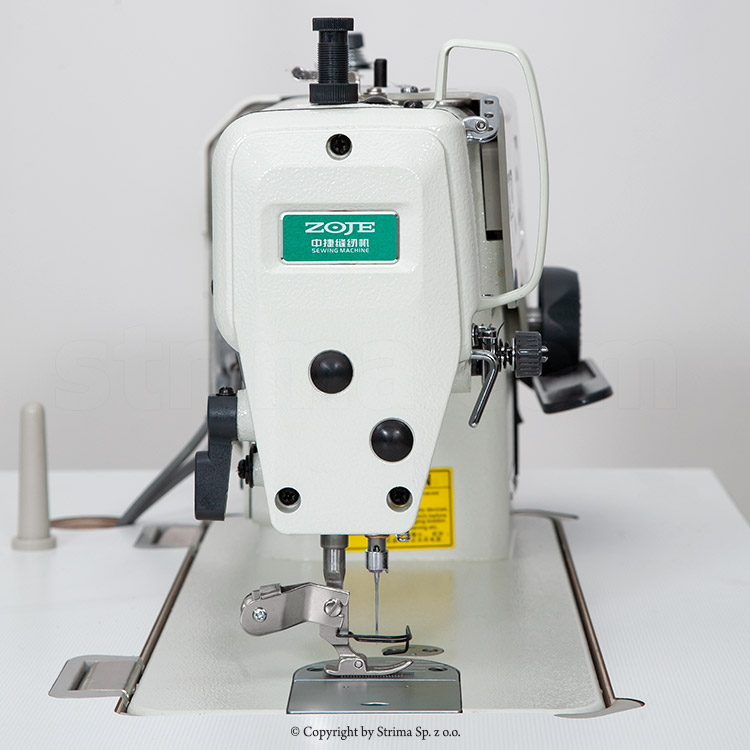

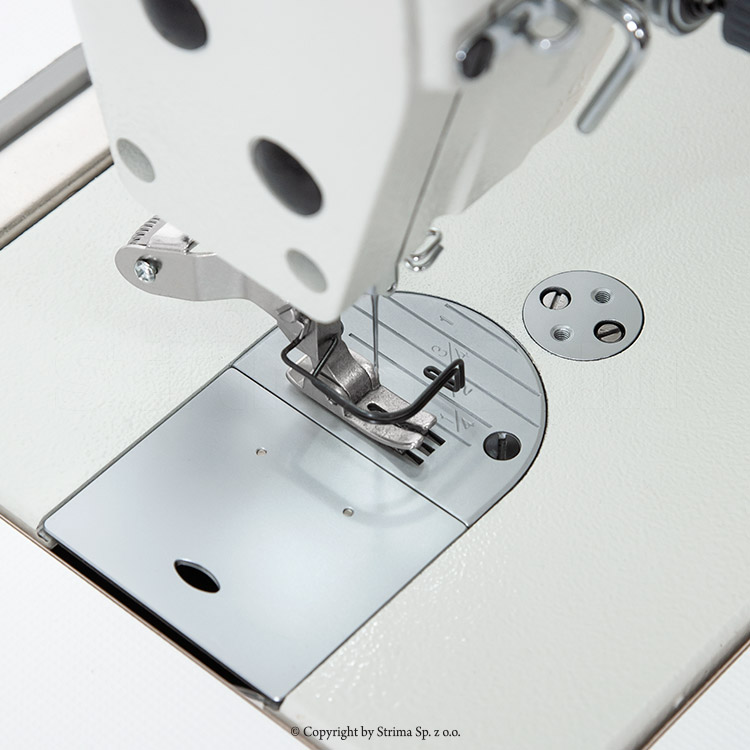

ZOJE A6000-5-G
1-needle lockstitch machine for medium and heavy materials - machine head
Description:
Zoje A6000-5-G model is 1-needle lockstitch machine for medium and thick materials. Lockstitch sewing machine Serial equipped with bottom feed and automatic needle positioning.
Sewing machine From new line of products ZOJE - V Generation .
Zoje Industrial 1-needle lockstitch sewing machine
A6000-5-G Machine with maximum sewing speed of 3500 s.p.m and maximum stitch length of - 5mm. Machine serial equipped with bottom feed and automatic needle positioning. In this model maximal foot height is - 13 mm. In standard it its equipped with thread cutting device positioned on foot pin. Sewing machine with central lubrication circuit.High end industrial lockstich machine
A6000-5-G ma energooszczędny silnik AC Servo, skrzynkę sterującą z włącznikiem wbudowane w główkę. Thanks to integration of all elements the machine works quietly and without adverse vibrations.AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor.Built-in fan with more cooling efficiency guarantees more effectiveness during work Lockstitch Serial equipped with modern touch screen for quick and easy change in sewing parameters.We recommend SCHMETZ system needles 135x5 or 135x5 SERV7, with tips,depending on the type of sewn material.
Technical specification:
Type of sewing material | medium, heavy |
Type of feed | bottom |
Automatic needle positioning | yes |
Automatic thread trimming | no |
Automatic foot lifter | no |
Automatic bartacking | no |
Wiper | no |
Stitch compensation button | no |
Type of lubrication | central circuit |
Side trimmer | no |
LED lighting of working field | yes |
Max. stitch length | 5.0 mm |
Presser foot lift height | 13 mm |
Max. sewing speed | 3500 s.p.m. |
Built-in AC Servo motor | yes |
Needle system | 135X5 |
Kit | head |
