Overlock (safety stitch) machines 4-thread

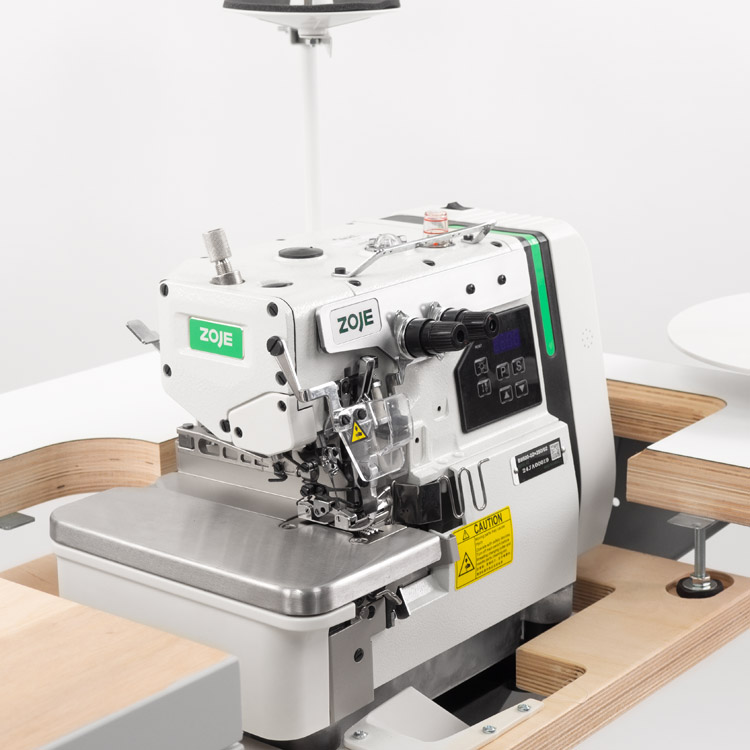

ZOJE B9500-02x250-02 SET
4-thread, mechatronic double chainstitch overlock machine with needles positioning - complete machine
Description:

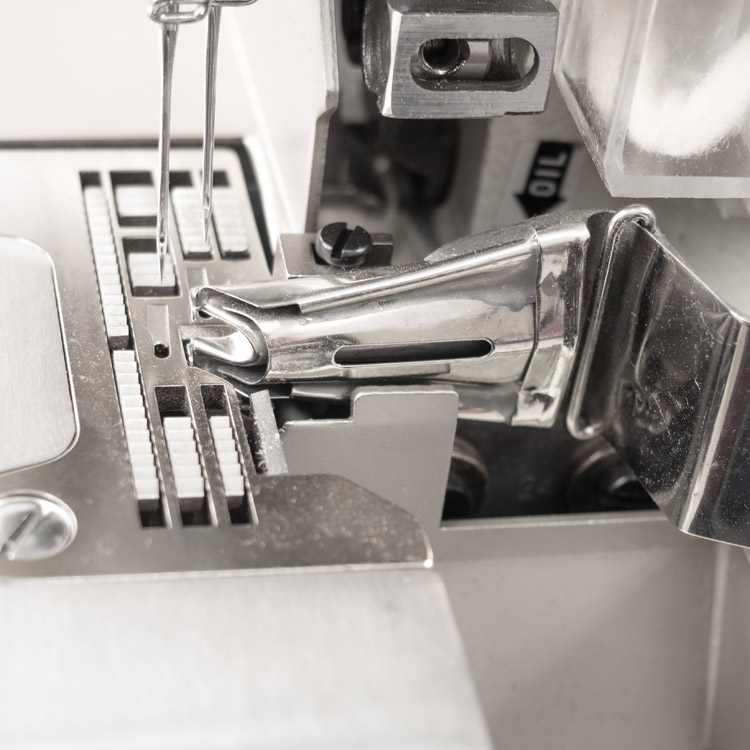

ZOJE B9500-02x250-02 SET is a 2-needle / 4-thread double chainstitch overlock machine with a cutter for light and medium materials. Efficient, quiet and fast. Applicable for tape binding (binder included) and sewing pockets.
Now with energy-saving AC Servo motor, control box and power switch integrated into machine head (mechatronics "all-in-one" set). AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor. Ensures quiet work without adverse vibration.
Needles gauge 5 mm, stitch length 3 mm, max. sewing speed 7.000 s.p.m., differential bottom feed, central lubrication.

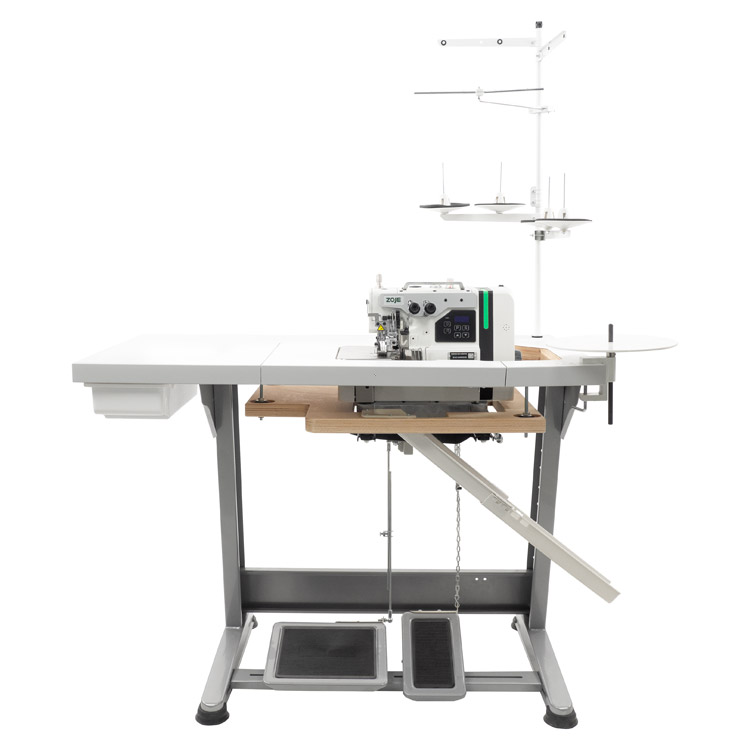

A complete sewing machine, on the stand and PREMIUM tabletop of the renowned Kessler brand. The highest quality table top made of 30-layer birch plywood guarantees long life and resistance to working conditions. Covered with structural laminate with increased resistance to impact and abrasion.
For this machine we recommend SCHMETZ needles system B-27 with correct needle points, depending on the fabric.
Technical specification:
| Type of sewing material | light, medium |
| Number of threads | 4 |
| Type of feed | – |
| Automatic needle positioning | yes |
| Top feed | no |
| Automatic thread trimming | no |
| Automatic foot lifter | no |
| Overedging width | – |
| Total seam width | – |
| LED lighting of working field | yes |
| Max. stitch length | – |
| Presser foot lift height | – |
| Max. sewing speed | 7000 s.p.m. |
| Built-in AC Servo motor | yes |
| Needle system | B-27 |
| Kit | complete set |
