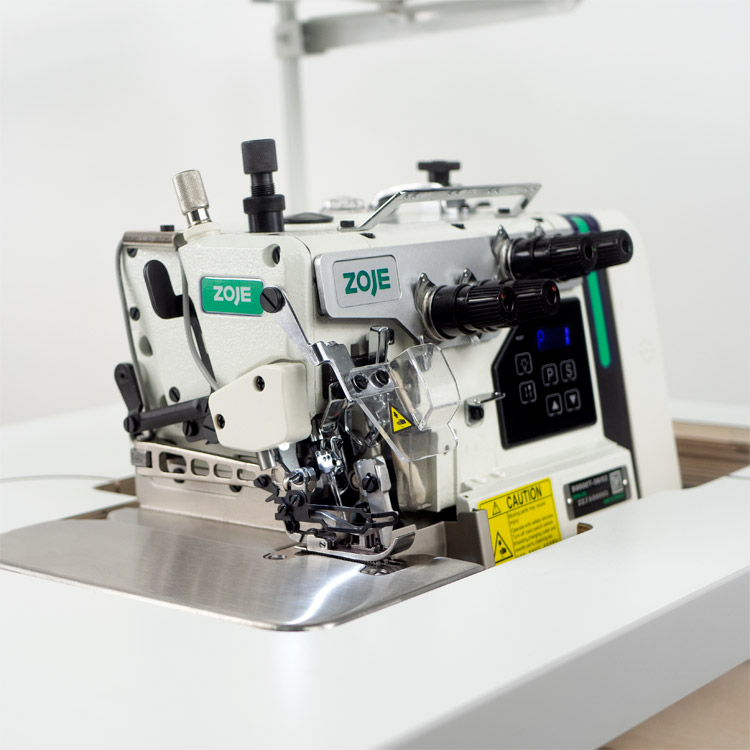

Overlock (safety stitch) machines 4-thread
ZOJE B9500T-13H-02 SET
4-thread, mechatronic overlock machine for medium materials with top feed and needles positioning - complete sewing machine
Description:
2-needle / 4-thread overlock (safety stitch) machine (stitch type 514) for medium materials. Equipped with energy-saving AC Servo motor built-in into machine head and automatic needle positioning (top - bottom). AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor. Ensures quiet work without adverse vibration.
Needles gauge 2 mm, seam width 4 mm (6 mm with safety stitch), max. sewing speed 6.500 s.p.m., differential bottom feed and top feed - ensures accurate guiding of the upper layer of material, eliminates the problem of sewing over cross seams. Direct drive type needle bar and central lubrication. Stitch length (density) adjustable by special mechanism. It has a differential adjustment in the range of 0.8-1.4 mm.
A complete sewing machine, on the stand and PREMIUM tabletop of the renowned Kessler brand. The highest quality table top made of 30-layer birch plywood guarantees long life and resistance to working conditions. Covered with structural laminate with increased resistance to impact and abrasion.
For this machine we recommend SCHMETZ needles system B-27 with correct needle points, depending on the fabric.
Technical specification:
| Type of sewing material | medium |
| Number of threads | 4 |
| Type of feed | – |
| Automatic needle positioning | yes |
| Top feed | yes |
| Automatic thread trimming | no |
| Automatic foot lifter | no |
| Overedging width | 6 mm |
| Total seam width | – |
| LED lighting of working field | yes |
| Max. stitch length | – |
| Presser foot lift height | 7 mm |
| Max. sewing speed | – |
| Built-in AC Servo motor | – |
| Needle system | B-27 |
| Kit | complete set |
