Sewing machines

Coverstitch (interlock) machines with flat-bed

3-needle interlock, flat bed with built-in AC Servo motor and automatic needle positioning - head
3-needle interlock, flat bed with built-in AC Servo motor and automatic needle positioning - head
3-needle interlock, flat bed with built-in AC Servo motor and automatic needle positioning - head

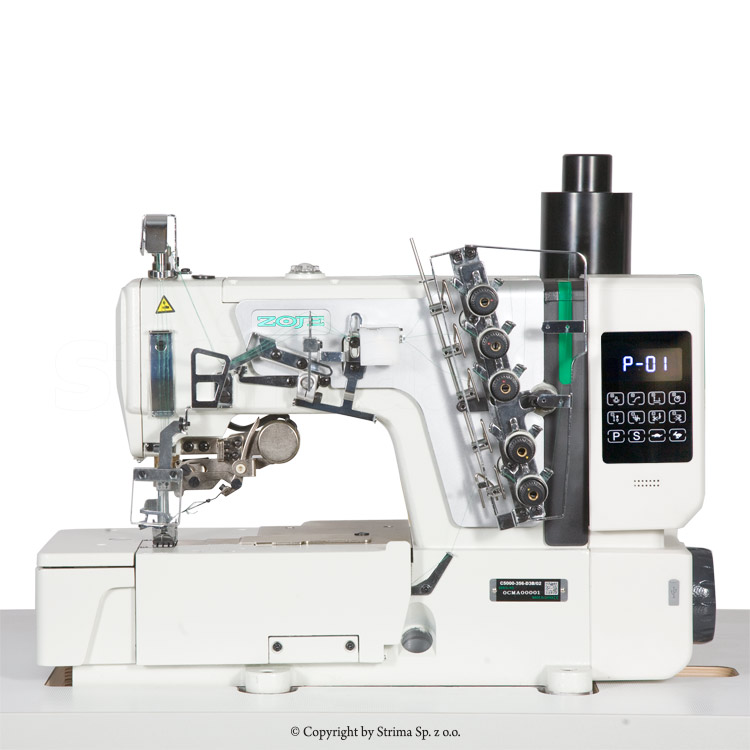

ZOJE C5000-364-D3B-02

3-needle interlock, flat bed with built-in AC Servo motor and automatic needle positioning - head

Compare products

Description:

ZOJE C5000-356-D3B-02 SET is 3-needle, 5-thread interlock with a flat bed, differential bottom feed and automatic needle positioning. Machine also known as crosscut or render.

Industrial, three needle interlock

C5000-364-D3B-02 SET for sewing light and medium materials is a mechatronic sewing machine with maximum speed sewing - up to 5000 stitches per minute. The gauge of the needles in this model is 6.4 mm and the maximum stitch length is 4.5 mm. The machine allows you to sew classic ladder stitch with decorative upper interlacing on or off. In Zoje C5000 the presser foot can be raised 5 mm. The machine is equipped with a central lubrication system.

ZOJE C5000-364-D3B-02 SET3-needle, 5-thread interlock with a cylindrical bed (also called crosscut or render) with electromagnetic thread cutting and foot lifting. An interlock equipped with a thread deflector, the so-called wiper with an integrated thread holding function - is installed at the factory.
The set includes elements for cutting the upper interlace - for self-installation.
It is not possible to use the wiper and the top flight at the same time.

Energy-saving five-thread interlock

ZOJE C5000-364-D3B-02 SET is a modern sewing machine designed to work quietly and save energy. The control built into the head and the efficient AC SERVO motor guarantee up to 70% less energy consumption and almost silent operation of the machine. Interlok is standard equipped with precise LED illumination of the working area.

For Zoje interlocks, we recommend SCHMETZ needles system UY 128 GAS or UY 128 GAS SERV7 with appropriate tips.

Technical specification:

Coverstitch machine for applications universal
Type of sewing material light, medium
Automatic needle positioning yes
Automatic thread trimming yes
Automatic foot lifter yes
Bed type flat
Needle gauge of coverstitch machine 6,4 mm
LED lighting of working field yes
Presser foot lift height 5 mm
Max. sewing speed 5000 s.p.m.
Built-in AC Servo motor yes
Needle system UY 128 GAS
Kit head with Servo motor and programming control panel
