Sewing machines

Description:

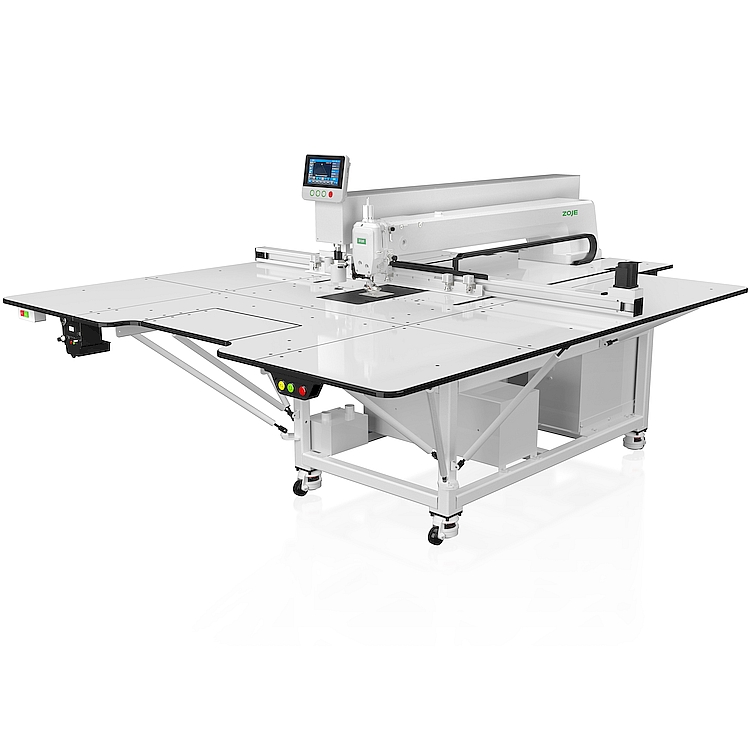

ZOJE ZJ-M6-S900H-SF-LK2-V3 SET is a machine thanks to which the production process will be faster and easier . Don't waste time, program sewing on one element and save money with each subsequent one.

Build to create

The device offers comprehensive solutions in the furniture, clothing, automotive, leather, composite, printing and advertising industries as well as technical textiles.



The machine is equipped with a CO2 laser (120 W) that enables cutting and engraving.
The laser tube is installed next to the machine head - it allows you to cut the top layer of the material, cut the material or engrave it. Smoke extraction from the top and bottom of the table.

The best for the production of clothing from all materials - from sewing in zippers to sewing trouser pockets, flaps, sewing on belts, Velcro, production of quilted jackets. It will work wherever the production cycle consists of repetitive processes.

The machine allows you to program patterns on the touch control panel and store them in the machine's memory - up to 999 patterns. Both ready-made and programmed patterns can be edited.

The control panel with USB port allows you to import projects from other devices (supported file formats: .nsp, .vdt, .dst, .dxf). The set includes a PC program.

Machine equipped with automatic thread trimmer, air blower that works similar as wiper, safety switch and thread breaking detection.

Machine with Direct Drive system with servo motor mounted in machine head and built-in fast and precise stepping motors working in X and Y axis driven by belt. PDS Software for pattern making is also included on the SET of this machine.

RDIF scanner included - the machine can store pattern barcode, so it's easy to choose the pattern you want to use.

Table dimensions - 2060 x 2400 mm
Sewing area 1300 x 900 mm
Stitch length 0,1 - 12,7 mm
clamp lifting - up to 18 mm
max sewing speed - 3.000 s.p.m.
CO2 laser power - 120 W
Compressed air necessary - 5 bar
Open frame 1300 x 900 mm is included.

Needle system: 135x5. For automatic multidirection sewing machines use SCHMETZ needles in MR or SERV 7 version, with correct needle points, depending on the fabric.

Technical specification:

Type of sewing material	medium, heavy
Type of feed	–
Sewing area (in millimeters)	1300 x 900 mm
Automatic needle positioning	yes
Automatic thread trimming	yes
Wiper	yes
LED lighting of working field	yes
Max. stitch length	12.7 mm
Presser foot lift height	16 mm
Max. sewing speed	3000 s.p.m.
Built-in AC Servo motor	yes
Needle system	135X5
Kit	–
