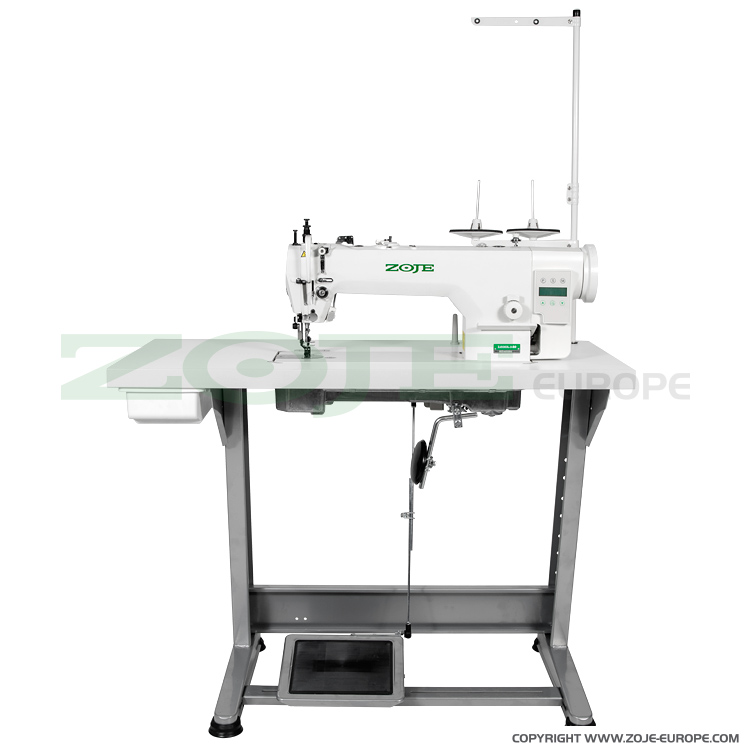

ZOJE ZJ0303L-3-BD SET
Upholstery and leather lockstitch machine with built-in AC Servo motor and control box (Mechatronic), compound feed, large hook - the complete sewing machine
Description:
ZOJE ZJ0303L-3-BD SET is a universal upholstery and leather sewing machine for heavy materials. Machine with the compound feed (bottom and presser foot feed). Large capacity of the bobbin.
Maximum sewing speed 2.000 s.p.m., maximum stitch length 8 mm, high top-feed lift 5 mm. High fabric clearance under the presser foot (16 mm) facilities easy material handling. Machine with increased sewing field (distance between needle bar and machine's arm is 33,5 cm) and also equipped with electronic stitch compensation button.
A complete sewing machine, on the stand and PREMIUM tabletop of the renowned Kessler brand. The highest quality table top made of 30-layer birch plywood guarantees long life and resistance to working conditions. Covered with structural laminate with increased resistance to impact and abrasion.
For this machine we recommend SCHMETZ needles system 135x17 or 135x17 SERV7, with correct needle points, depending on the fabric.
Technical specification:
Type of sewing material | medium, heavy |
Type of feed | bottom and walking foot |
Automatic needle positioning | yes |
Automatic thread trimming | no |
Automatic foot lifter | no |
Automatic bartacking | no |
Wiper | no |
Stitch compensation button | yes |
Type of lubrication | central circuit |
Side trimmer | no |
LED lighting of working field | yes |
Max. stitch length | 8.0 mm |
Presser foot lift height | 16 mm |
Max. sewing speed | 2000 s.p.m. |
Built-in AC Servo motor | yes |
Needle system | 135X17 |
Kit | complete set |
