ZOJE ZJ0303L-3-CX-L-BD/02 SET
Upholstery and leather lockstitch machine with built-in AC Servo motor and control box (Mechatronic), compound feed, large hook - complete machine
Description:
Universal upholstery and leather Zoje sewing machine for heavy materials and can realize multi layer sewing . Machine with the compound feed [bottom and presser foot feed]. Large capacity of the bobbin, maximum sewing speed 2.200 s.p.m., stitch length 4-12 mm, high top-feed lift 6mm. High fabric clearance under the presser foot using knee lifter [16mm] facilities easy material handling.

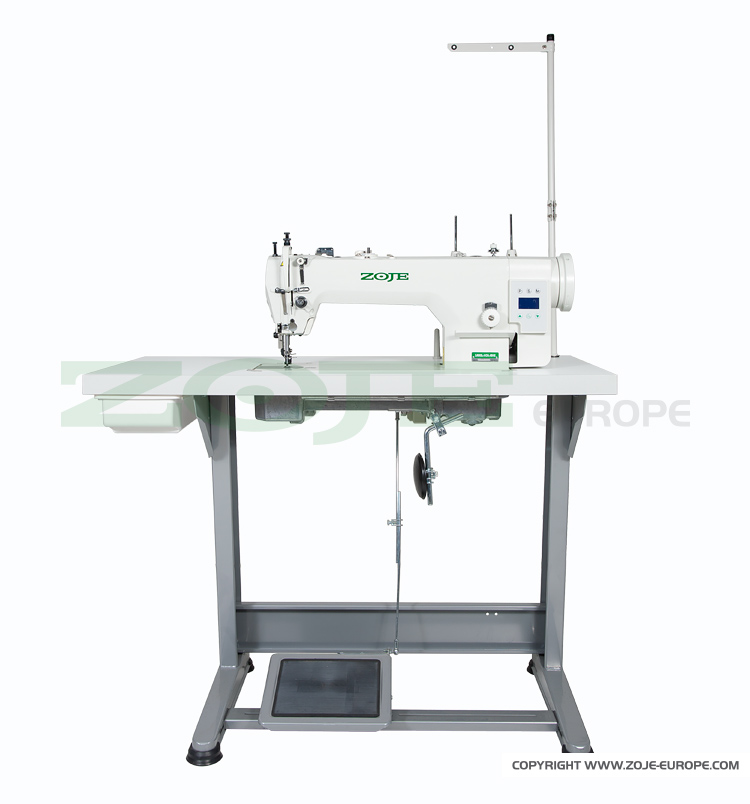

A complete sewing machine, on the stand and PREMIUM tabletop of the renowned Kessler brand. The highest quality table top made of 30-layer birch plywood guarantees long life and resistance to working conditions. Covered with structural laminate with increased resistance to impact and abrasion.
For this machine we recommend SCHMETZ needles system 135x17 or 135x17 SERV7, with correct needle points, depending on the fabric.
Technical specification:
| Type of sewing material | heavy, very heavy and leather |
| Type of feed | bottom and walking foot |
| Automatic needle positioning | yes |
| Automatic thread trimming | no |
| Automatic foot lifter | no |
| Automatic bartacking | no |
| Wiper | no |
| Stitch compensation button | yes |
| Type of lubrication | central circuit |
| Side trimmer | no |
| LED lighting of working field | yes |
| Max. stitch length | 12.0 mm |
| Presser foot lift height | 16 mm |
| Max. sewing speed | 2200 s.p.m. |
| Built-in AC Servo motor | yes |
| Needle system | 135X17 |
| Kit | complete set |
