ZOJE ZJ0303L-3-D4 SET
Upholstery and leather lockstitch machine with built-in AC Servo motor and control box (Mechatronic), compound feed, large hook - complete machine
Universal upholstery and leather Zoje sewing machine for heavy materials and can realize multi layer sewing. Machine with the compound feed (bottom and presser foot feed).
Large capacity of the bobbin, maximum sewing speed 2.000 s.p.m., maximum stitch length 8 mm, high fabric clearance under presser foot is 8mm by hand, 16mm by knee lifter.
Serial equipped with automatic functions: thread trimmer, foot lifting, reverse feeding with programmed size of the initial and final bartack, and needle positioning. Integrated energy-saving LED lamp for lighting of working field.
Machine with increased sewing field (distance between needle bar and machine's arm is 335 mm) and also equipped with electronic stitch compensation button and auto foot lifter.
Machine head with built-in AC Servo motor and control box (Mechatronic). Direct Drive Servo Motor used in machine eliminates the need for belts. It uses minimal power while idle, power increases only when the treadle is depressed, thus provides an increase in efficiency, quick start-up, eliminates noise (compared with a standard clutch motor) and saves energy.
For this machine we recommend SCHMETZ needles system 135x17 or 135x17 SERV7, with correct needle points, depending on the fabric.

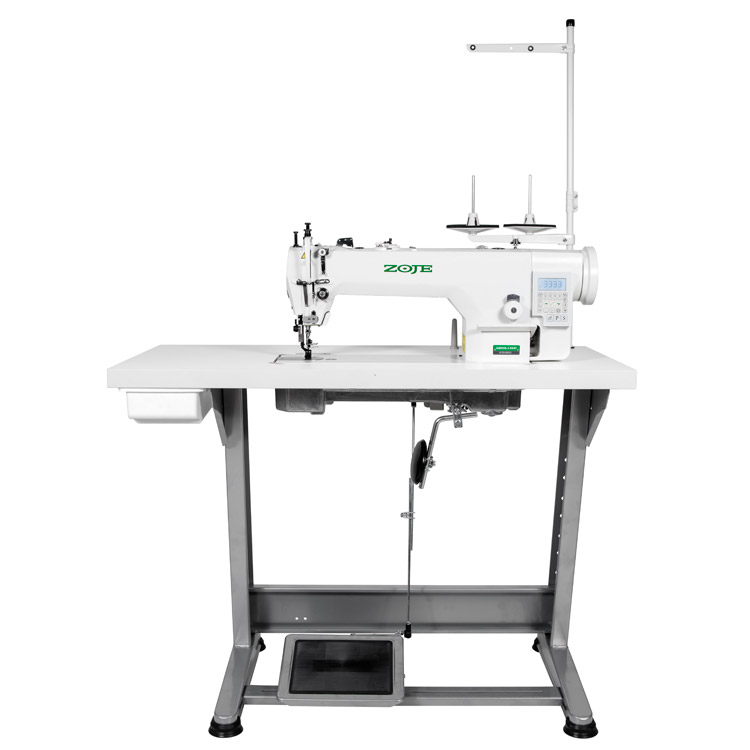

Complete sewing machine with Kessler stand and table top.
|Type of sewing material||very heavy and leather|
|Type of feed||bottom and walking foot|
|Automatic needle positioning||yes|
|Automatic thread trimming||yes|
|Automatic foot lifter||yes|
|Stitch compensation button||yes|
|Type of lubrication||central circuit|
|LED lighting of working field||yes|
|Max. stitch length||8.0 mm|
|Presser foot lift height||16 mm|
|Max. sewing speed||2000 s.p.m.|
|Built-in AC Servo motor||yes|
