Button sewing machines programmable
ZOJE ZJ1903D-301-3-04-V4
Electronic button sewing machine - machine head
Description:
Electronic 2-thread button sewing machine to sew flat buttons, for light and medium materials. Machine uses bulit-in fast and precise stepping motors working in x and y axis and mini AC Servo motor mounted in machine head. LED lamp for lighting of working field in standard.
Lockstitch seam prevents the button to unsew. 50 programmed patterns in standard, that can be modified and saved on the control panel (up to 200 patterns). Direct and fast access to 5 preferred patterns.
Button diameter 8-20 mm, max. sewing speed 2.700 s.p.m., thread trimmer, foot lifting up to 13 mm.
For this machine we recommend SCHMETZ needles system 135x17 or 135x17 SERV7 with correct needle points, depending on the fabric.

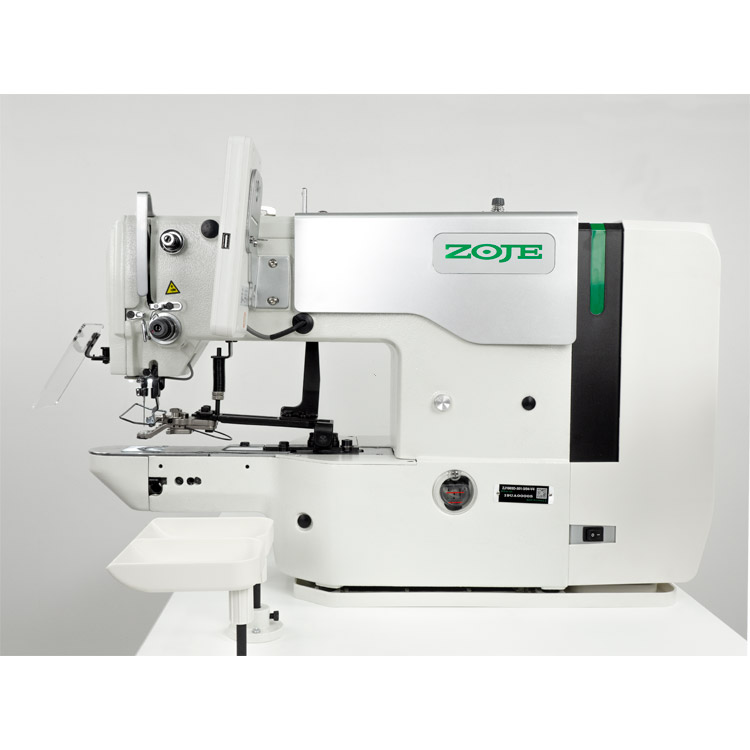

Sample photo, may slightly differ from the actual appearance of the machine.
Technical specification:
| Type of sewing material | light, medium |
| Type of feed | – |
| Button diameter | 8 - 20 mm |
| Automatic needle positioning | – |
| Automatic thread trimming | yes |
| Pattern quantity | 50 |
| Max. sewing area | – |
| LED lighting of working field | – |
| Max. stitch length | – |
| Presser foot lift height | – |
| Max. sewing speed | 2700 s.p.m. |
| Built-in AC Servo motor | yes |
| Needle system | 135X17 |
| Pattern quantity | 50 |
| Kit | complete set |
