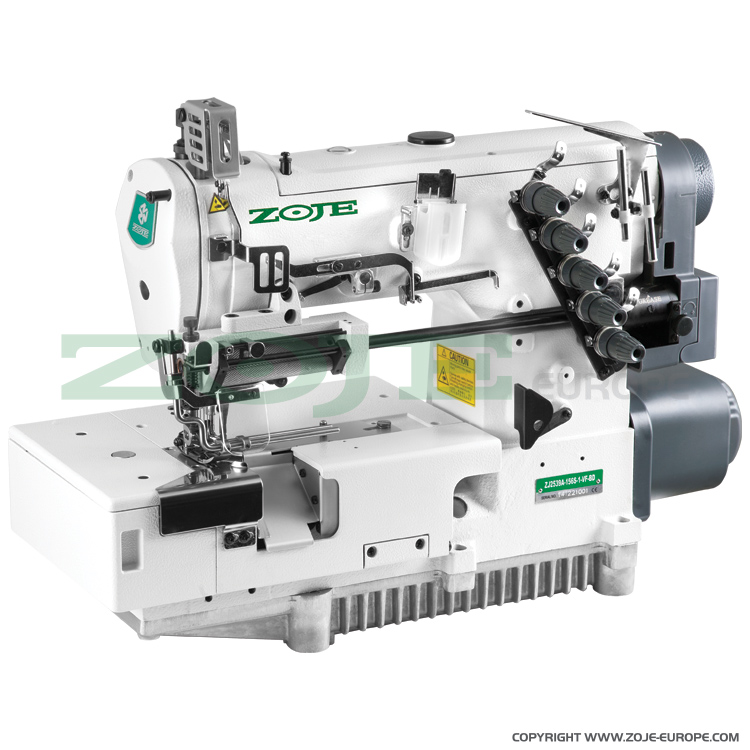

ZOJE ZJ2539A-156S-1-VF-BD SET
3-needle flat bed coverstitch (interlock) machine for elastic band attaching, with built-in AC Servo motor and needles positioning - complete machine
Description:
3-needle, 5-thread flat bed coverstitch machine (interlock) for elastic band attaching, with right hand fabric trimmer. For light and medium materials. Equipped with energy-saving AC Servo motor built-in into machine head and automatic needles positioning (top - bottom). AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor. Ensures quiet work without adverse vibration.
Needles gauge 5.6 mm, differential bottom feed, top and bottom covering (top covering possible to switch off), max. sewing speed 5.000 s.p.m., central lubrication.
Direct Drive Servo Motor used in machine eliminates the need for belts. It uses minimal power while idle, power increases only when the treadle is depressed, thus provides an increase in efficiency, quick start-up, eliminates noise (compared with a standard clutch motor) and saves energy.
A complete sewing machine, on the stand and PREMIUM tabletop of the renowned Kessler brand. The highest quality table top made of 30-layer birch plywood guarantees long life and resistance to working conditions. Covered with structural laminate with increased resistance to impact and abrasion.
For this machine we recommend SCHMETZ needles system UY 128 GAS or UY 128 GAS SERV7 with correct needle points, depending on the fabric.
Technical specification:
Coverstitch machine for applications | special applications |
Type of sewing material | light, medium |
Type of feed | – |
Automatic needle positioning | yes |
Automatic thread trimming | no |
Automatic foot lifter | no |
Bed type | flat |
Needle gauge of coverstitch machine | 6,4 mm |
LED lighting of working field | yes |
Max. stitch length | – |
Presser foot lift height | 6 mm |
Max. sewing speed | 5000 s.p.m. |
Built-in AC Servo motor | yes |
Needle system | UY 128 GAS |
Kit | complete set |
