2-needle flat bed lockstitch machines with split needles

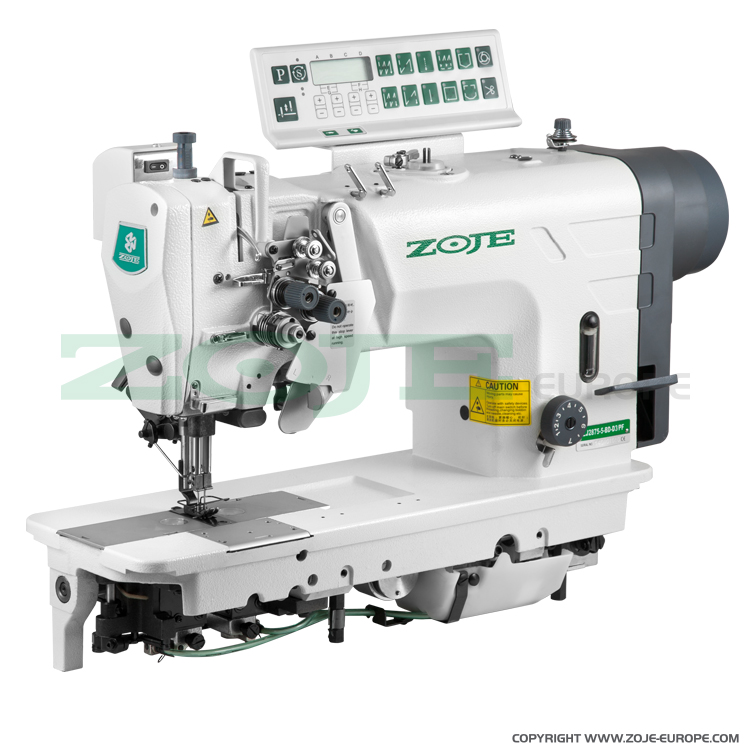

ZOJE ZJ2875-5-BD-D3/PF
2- needle automatic lockstitch machine for medium and heavy materials, with built-in AC Servo motor, split needles, large hooks - machine head
Description:
2-needle automatic lockstitch machine with split needles and large hooks, for medium and heavy materials. With energy-saving AC Servo motor built-in into machine head. Serial equipped with automatic functions: thread trimmer, reverse feeding with programmed size of the initial and final bartack, foot lifter, needle positioning, wiper, programming control panel and integrated 3-degree, energy-saving LED lamp for lighting of working field.
Bottom feed and needle feed, needle gauge 6,4 mm, max. sewing speed 3.000 s.p.m., stitch length up to 7 mm, central lubrication.
For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV7 with correct needle points, depending on the fabric.
Technical specification:
| Type of sewing material | medium, heavy |
| Type of feed | bottom, needle |
| Automatic needle positioning | yes |
| Automatic thread trimming | yes |
| Automatic foot lifter | yes |
| Automatic bartacking | yes |
| Wiper | yes |
| Needle gauge of 2-needle machine | 6.4 mm |
| Type of lubrication | – |
| Hook type | large |
| LED lighting of working field | yes |
| Max. stitch length | 7.0 mm |
| Presser foot lift height | 11 mm |
| Max. sewing speed | 3000 s.p.m. |
| Built-in AC Servo motor | – |
| Needle system | 135X5 |
| Kit | head with built-in Servo motor and programming control panel |
