Flat bed chainstitch machines

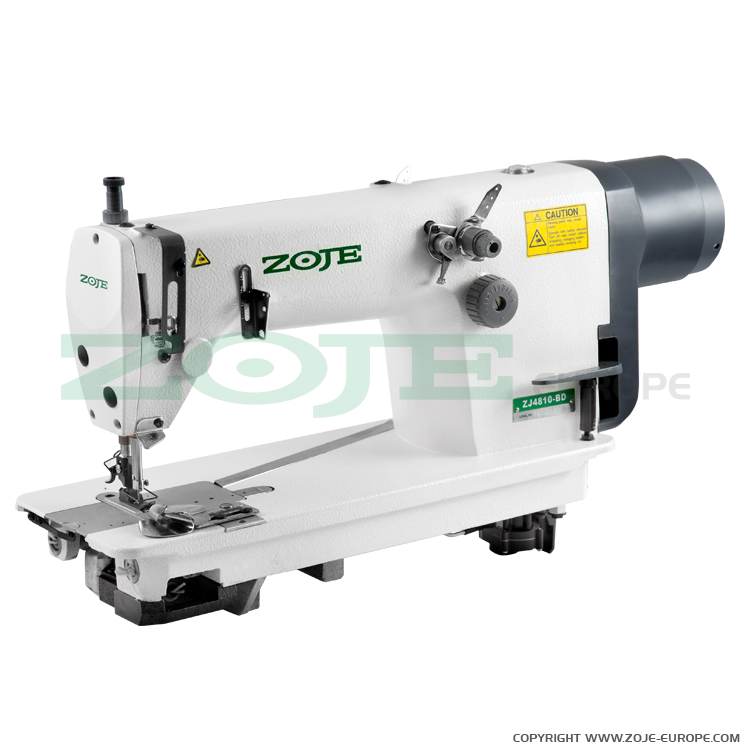

ZOJE ZJ4810-BD
Chainstitch machine with built-in AC Servo motor and needle positioning - machine head
Description:
1-needle, 2-thread chainstitch machine with energy-saving AC Servo motor built-in into machine head and automatic needle positioning (top - bottom). Perfect there, where elastic and resistant seam is required, e.g. in trousers, working clothes, linings, banners. Machine equipped with looper which enables sewing without the necessity of frequent change of lower thread. Equipped with hemmer for French seam.
Bottom feed, max. sewing speed 5.500 s.p.m., max. stitch length 4 mm, foot lifting up to 10 mm, central lubrication.
For this machine we recommend SCHMETZ needles system 149x7 with correct needle points, depending on the fabric.
Technical specification:
| Type of sewing operation | – |
| Type of feed | – |
| Automatic needle positioning | – |
| Needle gauge of multineedle machine | – |
| Automatic thread trimming | – |
| LED lighting of working field | yes |
| Max. stitch length | – |
| Presser foot lift height | 10 mm |
| Max. sewing speed | 5500 s.p.m. |
| Built-in AC Servo motor | – |
| Needle system | 149X7 |
| Needle quantity of multineedle machine | – |
| Kit | head |
