Pattern sewing machines

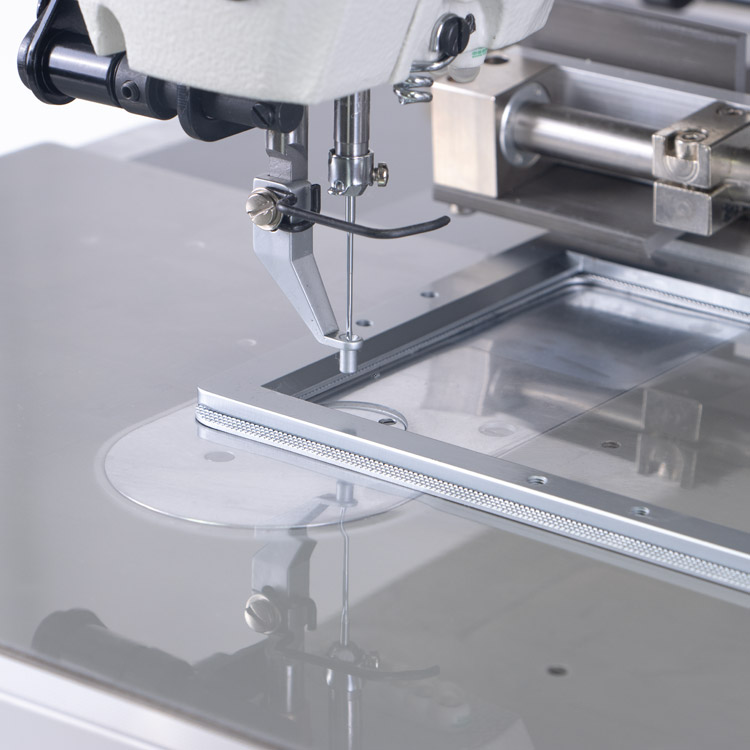

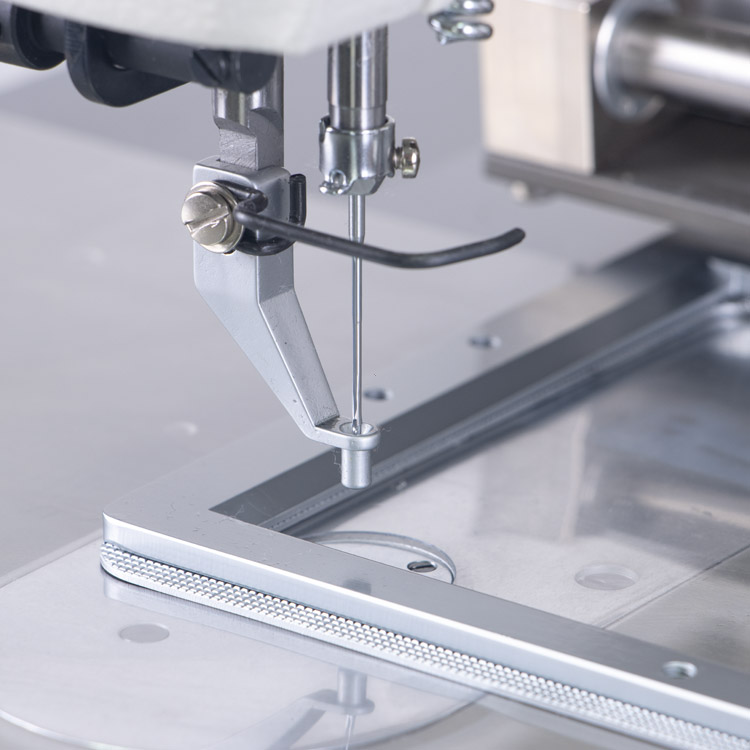

ZOJE ZJ5770A-1510HH1-C SET
Pattern sewing machine - complete sewing machine
Description:
Programmable pattern sewing machine. Enables patterns programming on the touch control panel and storing them in memory - up to 999 patterns. The editing of already existing as well as already programmed patterns.
Control panel with USB port allows importing designs from other devices (supports .dxf files).
Serial equipped with automatic thread trimmer, wiper, safety switch. Machine with built-in fast and precise stepping motors working in x and y axis and Direct Drive system with servo motor mounted in machine head.
Max sewing area 15 x 10 cm (15 x 7,5 cm with inside pressing clamp), stitch length 0,1 - 12,7 mm, clamp (frame) lifting up to 30 mm, max sewing speed 2.800 s.p.m. Compressed air necessary 5 bar. In this model, the material clamp is moved to the side of the working area.
A complete sewing machine, on the stand and PREMIUM tabletop of the renowned Kessler brand. The highest quality table top made of 30-layer birch plywood guarantees long life and resistance to working conditions. Covered with structural laminate with increased resistance to impact and abrasion.
For this machine we recommend SCHMETZ needles system 135x17 or 135x17 SERV7, with correct needle points, depending on the fabric.
Technical specification:
| Type of sewing material | – |
| Type of feed | – |
| Sewing area (in millimeters) | – |
| Automatic needle positioning | – |
| Automatic thread trimming | – |
| Wiper | – |
| LED lighting of working field | – |
| Max. stitch length | – |
| Presser foot lift height | – |
| Max. sewing speed | – |
| Built-in AC Servo motor | – |
| Needle system | – |
| Kit | – |
