Overlock (safety stitch) machines 4-thread
-machine--for-light-and-medium-materials--with-built-in-AC-Servo-motor---machine-head.jpg "ZOJE ZJ952S-13-BD - 4-thread cylinder bed overlock (safety stitch) machine, for light and medium materials, with built-in AC Servo motor - machine head - 1")

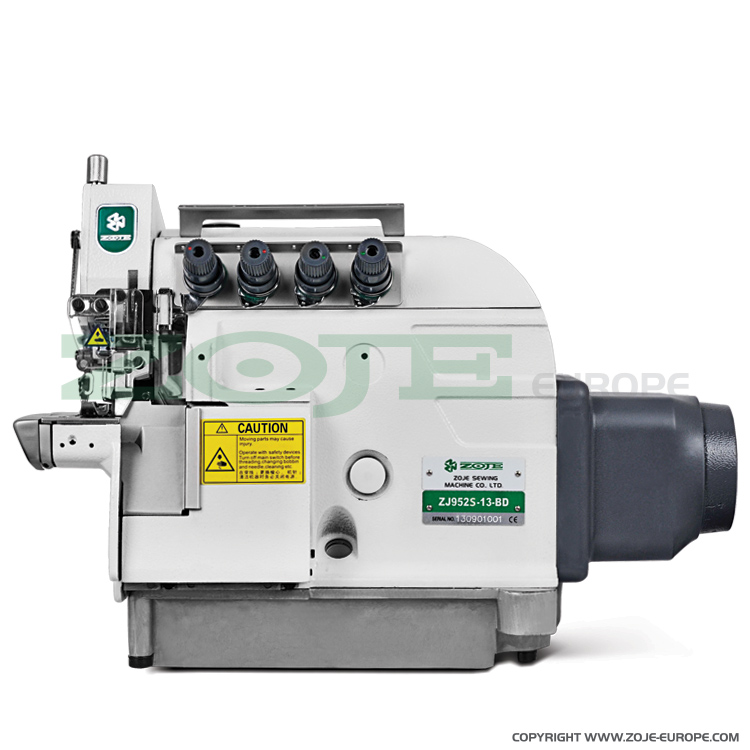

ZOJE ZJ952S-13-BD
4-thread cylinder bed overlock (safety stitch) machine, for light and medium materials, with built-in AC Servo motor - machine head
Description:
900 series is flagship ZOJE overlock series. 2-needle / 4-thread cylinder bed overlock (safety stitch) machine (stitch type 514) for light and medium materials. Equipped with energy-saving AC Servo motor built-in into machine head and automatic needle positioning (top - bottom). AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor. Ensures quiet work without adverse vibration.
Needles gauge 2 mm, seam width 6 mm, max. sewing speed 6.500 s.p.m. Direct drive type needle bar and central lubrication. Stitch length (density) adjustable by special mechanism.
For this machine we recommend SCHMETZ needles system B-27 with correct needle points, depending on the fabric.
Technical specification:
| Type of sewing material | light, medium |
| Number of threads | 4 |
| Automatic needle positioning | – |
| Top feed | no |
| Automatic thread trimming | – |
| Automatic foot lifter | – |
| Overedging width | 6 mm |
| Total seam width | 6 mm |
| LED lighting of working field | no |
| Presser foot lift height | 6 mm |
| Max. sewing speed | 6.500 s.p.m. |
| Built-in AC Servo motor | yes |
| Needle system | B-27 |
| Kit | head with built-in Servo motor |
