1-needle long arm, flat bed lockstitch machines

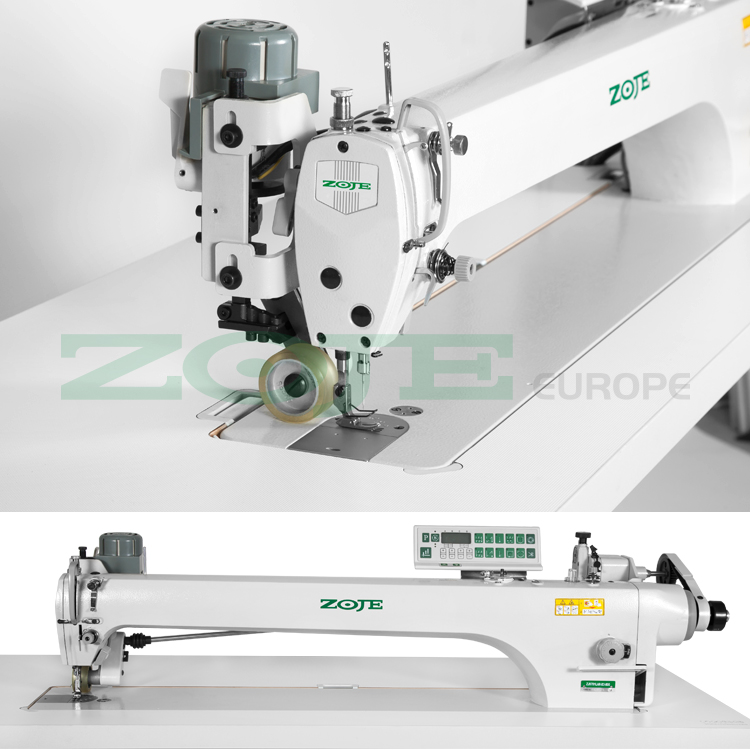

ZOJE ZJ9701LAR-D3-800/PF
Automatic long arm lockstitch machine with puller - machine head
Description:
1-needle long arm lockstitch machine with puller supporting material feeding and energy-saving AC Servo motor built-in into machine head. Serial equipped with automatic functions: thread trimmer, foot lifter, reverse feeding with programmed size of the initial and final bartack, needle positioning and with programming control panel and integrated 3-degree, energy-saving LED lamp for lighting of working field.
Machine designed for sewing light and medium materials with large areas.
Distance between needle bar and machine's arm is 80 cm, bottom feed, max. sewing speed 3.000 s.p.m., central lubrication.
For this machine we recommend SCHMETZ needles system 135x5 or 135x5 SERV 7, with correct needle points, depending on the fabric.
Technical specification:
| Type of sewing material | light, medium |
| Distance: needle bar - machine's arm | 80 cm |
| Type of feed | bottom |
| Automatic needle positioning | yes |
| Automatic thread trimming | yes |
| Automatic foot lifter | yes |
| Automatic bartacking | yes |
| Wiper | yes |
| Max. stitch length | 5.0 mm |
| Presser foot lift height | – |
| Max. sewing speed | 3000 s.p.m. |
| Built-in AC Servo motor | yes |
| Needle system | 135X5 |
| Kit | head with Servo motor and programming control panel |
