Description:

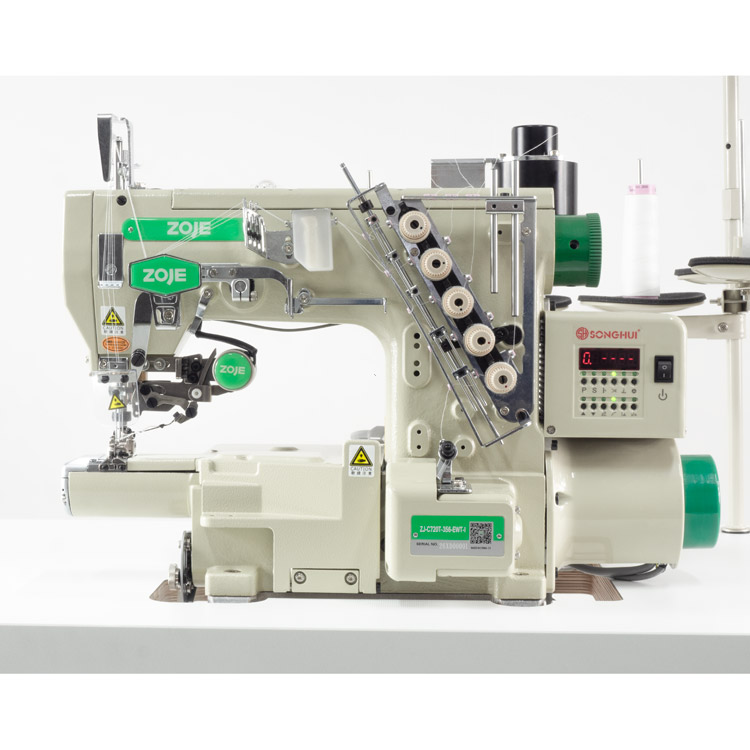

3-needle, 5-thread small cylinder bed coverstitch machine (interlock) for light and medium materials.

Economic motor

Interlock has an energy-saving AC Servo motor built into the head with the possibility of positioning the needles (up - down). The AC Servo motor uses up to 70% less energy than a conventional electronic or clutch motor. It guarantees quiet operation without unfavorable vibrations.

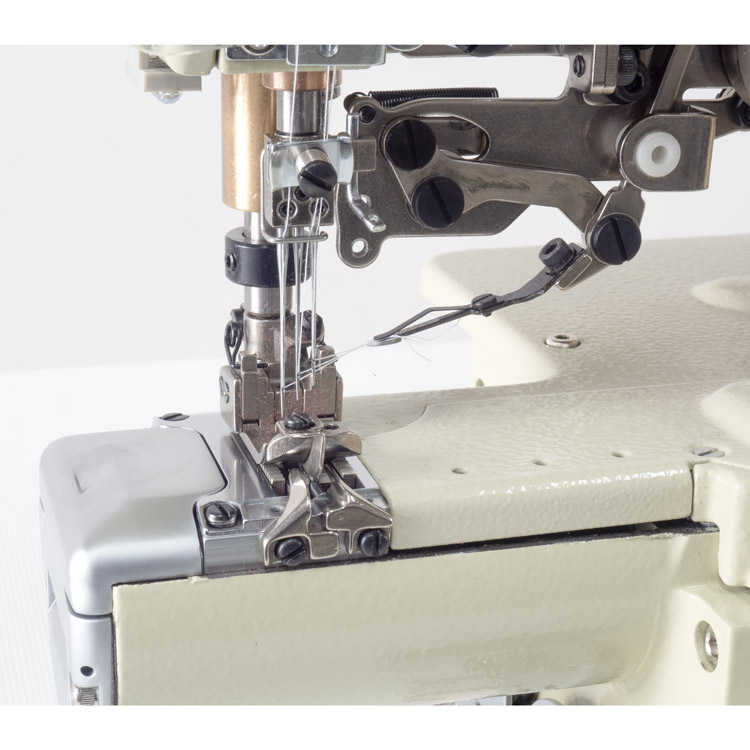

Needles gauge 5.6 mm, differential bottom feed, top and bottom covering (top covering possible to switch off), max. sewing speed 4.200 s.p.m., central lubrication. Diameter of the cylinder is only 60 mm.

Automatic functions

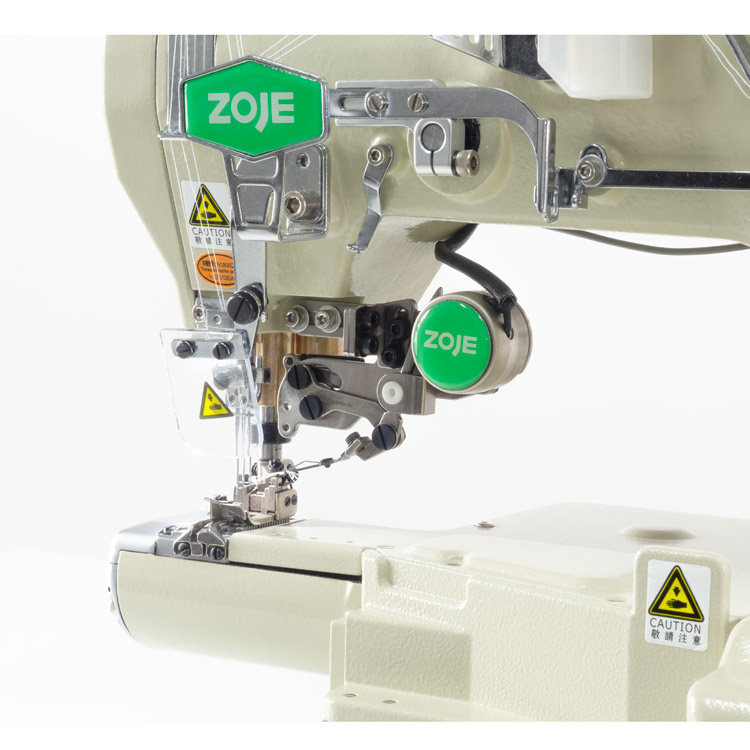

This model uses electromagnetic cutting of the lower and upper threads and automatic foot lift. These functions make it easier work and increase the quality of sewn elements.

The perfect machine for:
• sewing in cuffs, sleeves of sweatshirts and sweaters
• sewing trouser legs
• glove sewing

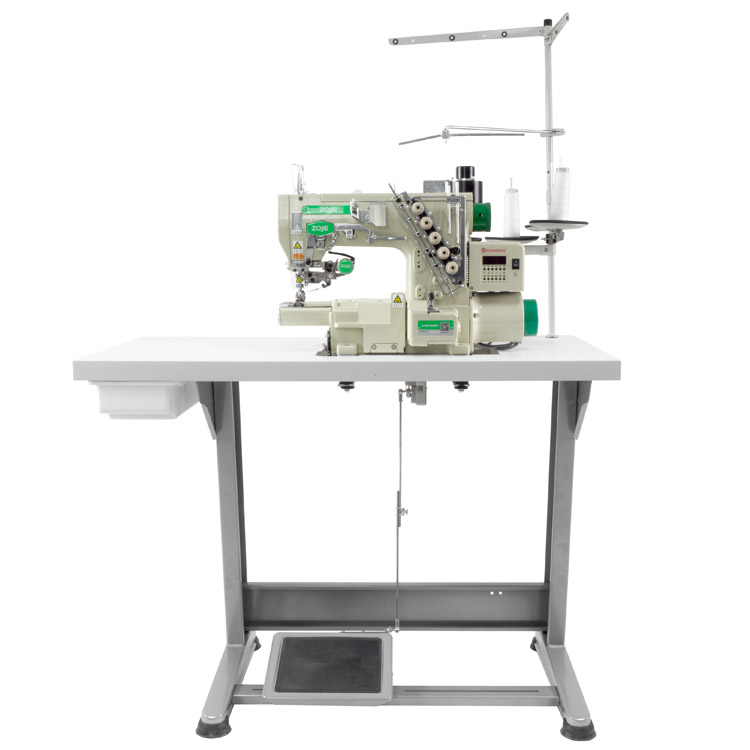

A complete sewing machine, on the stand and PREMIUM tabletop of the renowned Kessler brand. The highest quality table top made of 30-layer birch plywood guarantees long life and resistance to working conditions. Covered with structural laminate with increased resistance to impact and abrasion.

For this machine we recommend SCHMETZ needles system UY 128 GAS or UY 128 GAS SERV7 with correct needle points, depending on the fabric.

Technical specification:

Coverstitch machine for applications	–
Type of sewing material	–
Type of feed	–
Automatic needle positioning	–
Automatic thread trimming	–
Automatic foot lifter	–
Bed type	cylinder - small
Needle gauge of coverstitch machine	–
LED lighting of working field	–
Max. stitch length	–
Presser foot lift height	–
Max. sewing speed	–
Built-in AC Servo motor	–
Needle system	–
Kit	–
